FK-5112 Total Flood System

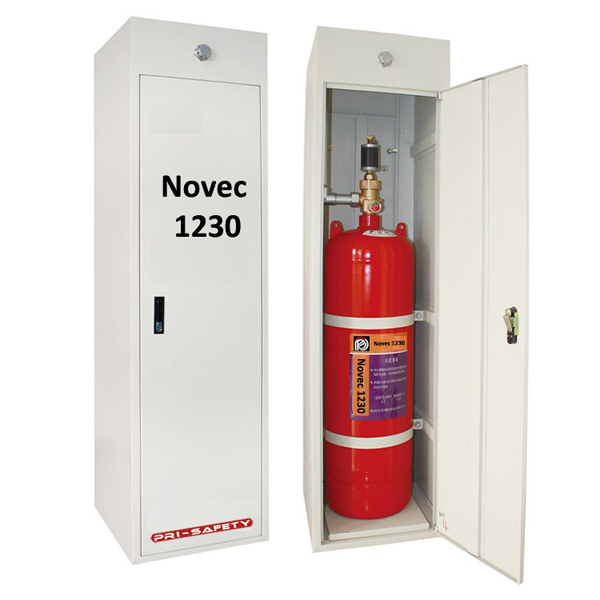

Cabinet Type Novec 1230 Total Flood System
 Novec 1230 is a kind of colorless ,tasteless,non-corrosive and electricity-insulating liquid,working become gas without residue and pollution after extinguishing.It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.

 1.Product Description.

1).Product parameter.

No.

specification

Technical Parameter

1

Filling pressure

2.5Mpa

2

Relief pressure

5.0±0.225Mpa

3

Spraying time

≤10s

4

Working temperature

050

5

Power

DC24V/1.6A

6

max working pressure

4.2Mpa

No.

model

max filling weight of agent(Kg)

outline dimension length*width*height(mm)

1

PRI/40

38

450*400*1450

2

PRI/70

67

500*450*1650

3

PRI/90

85

500*400*1650

4

PRI/100

95

500*400*1650

5

PRI/120

114

550*550*1900

6

PRI/150

143

550*550*1900

7

PRI/180

173

600*550*1900



2).Product Introduction.

Novec 1230 is a kind of colorless ,tasteless,non-corrosive and electricity-insulating liquid,working become gas without residue and pollution after extinguishing.It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.

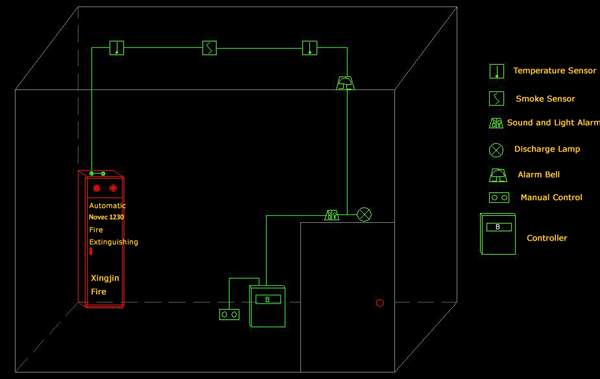

Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.

2.Product Applications:

Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.

The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.

3.Product Compositions:

Cabinet type of Novec 1230 automatic fire suppression system is mainly composed by two parts: Extinguishing devices and electrical accessories.

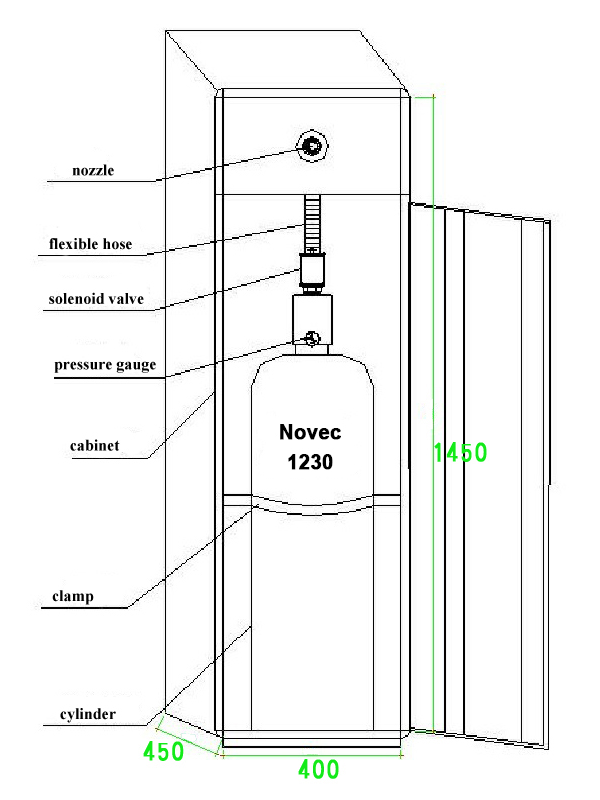

Extinguishing devices are such things, like cabinet to store extinguishing device, cylinder to fill and store Novec 1230 and flexible hose and solenoid actuator and so on.

Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.

These integrated two parts will be efficient to detect and supervise and alarm and extinguish fire automatically.

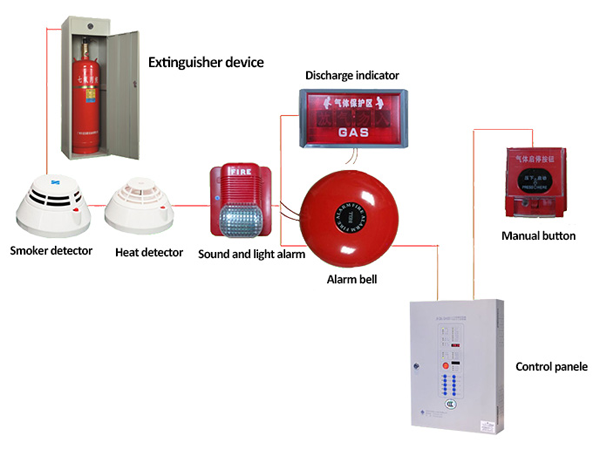

Here attached below is complete composition of whole system:







4.Competitive Advantage:

1.It can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.

2.Novec 1230 extinguishing system is special for critical assets or device. It will have no damage for your property. It is very efficient for you to protect your possession.

3.All agent will be discharged in short 10 seconds. Then it will be flooding overall.

4.It has time-delay mechanism. It is around 2 minute. When fire happens, there is enough time left to evacuate people from hazardous place.



5.Working principle.

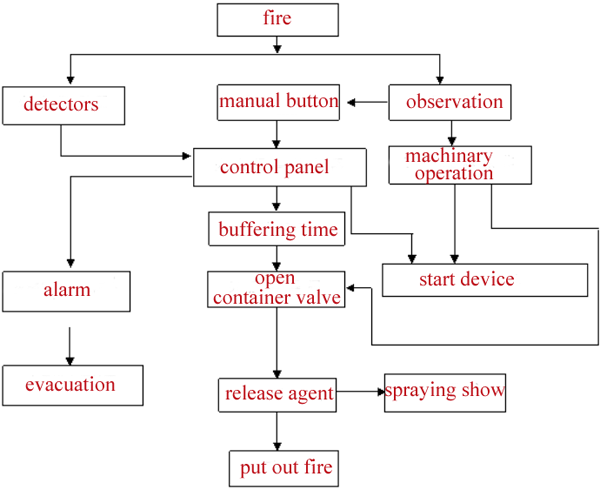

Here is the illustration of working principle to whole system,


6.Simulated diagram:

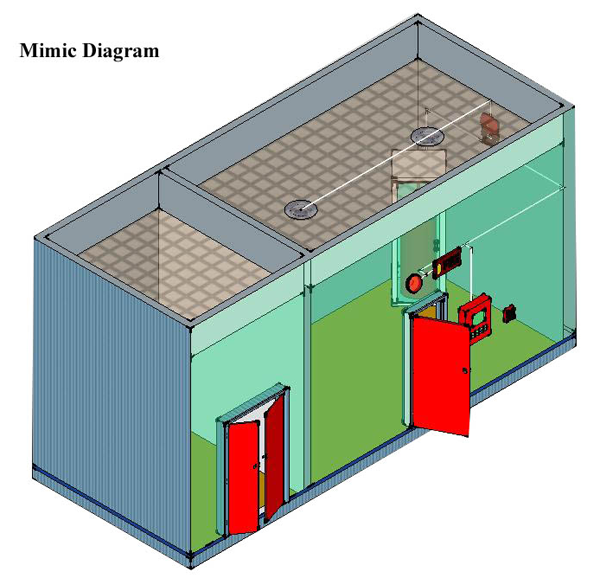

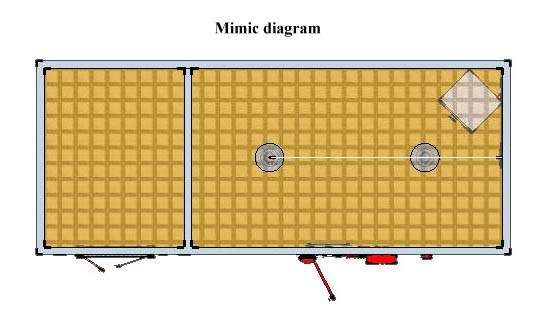

Below attached is one mimic diagram of single cabinet type of Novec 1230 automatic fire suppression system.








6.Packaging & Shipping

Packing

Carton package

Loading Port

Ningbo,China.

Delivery Method

By sea or by air.

Leading Date

Normally within 45 days upon receipt of deposit.

Payment Terms

T/T,L/C,D/P,D/A,Western Union ect.

Service

OEM service offered



7.Company Information

Pri-safety is a Chinese Manufacturer of fire suppression systems and fire extinguishers.

Our products are mainly export to Europe, Middle east, Africa, America, ect.

We are 9 years Gold Supplier in Alibaba. We have over 10 years experience in products and exporting.

We have CE, EN3, EN671, EN1869, UL, etc certificates for most of our products.

We mainly export to Europe, Middle east, Africa, Latin America and so on.

We also supply OEM products, High Quality, Professional Service, Honesty is our business basic rules.

PRI-SAFETY specialized in fire fighting products:

Fire extinguisher; Fire Suppression System; Aerosol Fire Extinguisher system; Fire hose reel; Fire hydrant; Fire cabinet; Fire Hose; Sprinkler system; Fire blanket; Fire alarm; Etc.

8. FAQ.

1). May I get a sample before placing an order?

---Yes, of course. Hope we have chance to work together to win more market.

2). Are your company PRI-SAFETY a manufacturer or trading company?

---Were a manufacturer.

3). Can you print our logo and support OEM?

---Yes, no problem. OEM supported.

4). How long does it take to delivery?

---Usually in 30~45 days after received down payment.

5).Payment Trems:

---30% T/T as deposit, 70% balance after finish goods and before shipment.
