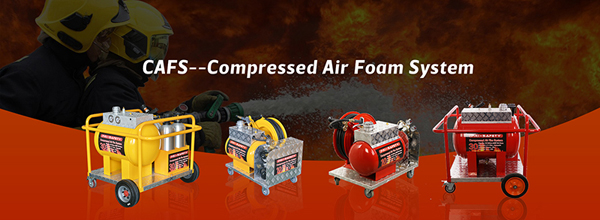

Why choose CAFS?
CAFS is a good choice between common fire extinguishers and fire vehicles.
When there is a small initial fire, common fire extinguisher is enough to put it out. But in some places,such as vehicle fires,
petrol station fires, ect,the fire is big and fast at the begining, commom fire extiguishers are not enough to put it out. But CAFS is very useful before the arrival of fire-fighting vehicles. CAFS lasts for 2 to 10 minutes or longer to extinguish the fire. It can eliminate fires or control fires that do not spread. What's more,CAFS operate easily, normal personal can use it, no need professional fighter. some narrow spaces, fire vehicles are very difficult to enter, but CAFS is small and obile,easy to enter some small places.Besides, some places, no fire hydrant, and no electric power, so CAFS is also the best choice.
CAFS can be customized according to different requirements.
Parematers for different models:
|
Items
|
10Gallon
|
30Gallon
|
60Gallon
|
|
Size (LxWxH)(MM)
|
760x550x680
|
1170x1220x1040
|
1270x1320x1140
|
|
Weight (Loaded/Empty) (KG)
|
121kg / 76kg
|
180kg / 315kg
|
220kg / 450kg
|
|
Premix Tank Volume (L)
|
38L
|
120L
|
235L
|
|
Discharge Nozzle
|
1"
|
1"
|
1"
|
|
Discharge Rate (L/min)
|
16L/min
|
32.5L/min
|
35L/min
|
|
Discharge Distance (M)
|
14M
|
23M
|
23M
|
|
Aluminum Air Cylinder
|
2units x 7L
|
2units x 13L
|
2units x 13L
|
|
Automatic Fire Hose Reel
|
1"x25M
|
1"x25M
|
1"x25M
|
|
Pressure Relief Valve
|
≥ 12Bar
|
≥ 12Bar
|
≥ 12Bar
|
|
Recharge time (mins)
|
≤5mins
|
≤5mins
|
≥ 12Bar
|
|
Discharge time (s)
|
150s
|
220s
|
≥400s
|
CAFS Feature
The system stored clean agent with high pressure gas bottle,stable for using.
The tank is Stainless Steel material with red painting.
The compressed gas drive the agent discharge for a long Distance.
The system is with Automatic type hose reel.
Wheels can be disassembled for easy transport.
It can be fixed on motorbike,pickup,fire truck,etc.
It can be designed for different application.

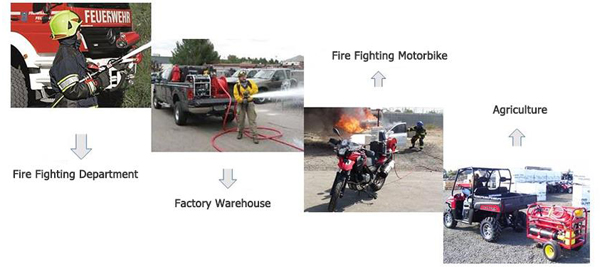

CAFS Application Range
Applicable to, but not limited to
AirPort
Gas/Oil Station
Fire Departments
Agriculture
Petrol Station
Factory Warehouse
Business and Home Owners
Mini Fire Vehicle and Fire Motorcycle
Community Fire Station
Details Images

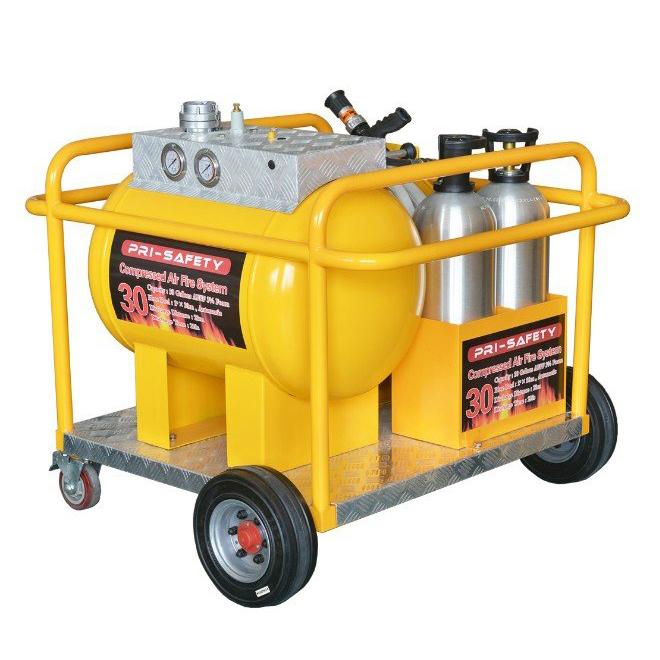

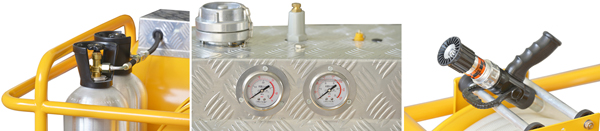

Spare Parts Details. 30gallons as example.

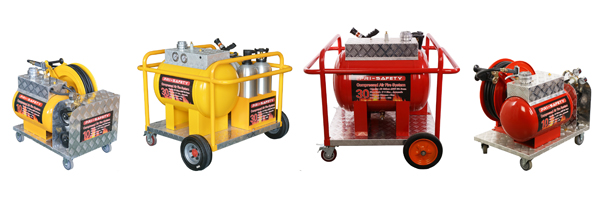

Different Models with different colors for reference.
10gallons, 30gallons, ...Support OEM.
Packing&Shipping
About Us
Certificates --- Most of our products are with approval of CE, EN3, EN671, UL, LPCB, MED, etc.
Exhibitions --- Over 25 years, we attend professional fire and safety exhibitions twice a year.
Company Profile
PRI-SAFETY is a manufacturing and trading combo for Automatic fire suppression systems, Fire Extinguishers and some safety products in China, with more than 25years full experience and a professional sales team.
Our products are mainly export to Europe, Middle east, America, South America, Africa, etc.
Most of our products are with approval of CE, EN3, EN671, UL, LPCB, MED, etc.
Our Main Product
1) Special Patent Products.
Tube Automatic Fire Extinguisher,Automatic Fire Suppression System(including Vehicle Fire Suppression System,Kitchen Fire Suppression System, Electric Equipment Fire Suppression System),Throwing Fire Extinguisher,Compressed Air Foam System (CAFS),Cooking Oil Pan Stick Fire Extinguisher.
2) General Products.
Dry Powder Fire Extinguisher,CO2 Fire Extinguisher, Foam Fire Extinguisher, Wet Chemical Fire Extinguisher, Water Fire
Extinguisher, Fire Hose Reel, Fire Hydrant, Fire Cabinet, Fire Alarm, etc.
