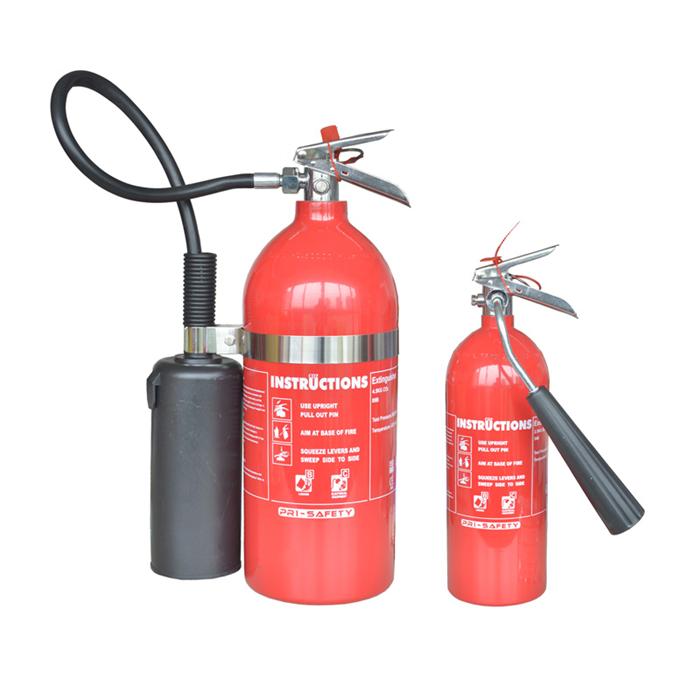

American Model Co2 Fire Extinguisher(DOT Listed)
·DOT Listed.
·Material: Aluminum Alloy
·Suitable against class B.
·Polyester powder external coating(Red, Polished).
·All fire extinguishers are tested no leakage.
·Chemical Agent: Co2 gas.
·Working Pressure: 174Bar.
Test Pressure: 250Bar.
Capacity
2.3kg
4.5kg(DOT)
6.8kg
9kg(DOT)
Item No.
AC-2.3
AC-4.5
AC-6.8
AC-9
Out-dia.
(mm)
Ф133
Ф175
Ф175
Ф203
Cylinder Length
(mm)
368
445
595
620
Cylinder Weight
(kg)
3
6.7
8
12.5
ExtinguisherWeight(kg)
6.1
12.5
15.5
22.8
Volume
(L)
3.5
6.8
10.03
13.5
Filled Weihgt
(kg)
2.3
4.5
6.8
9
Temperautre Range
-30+60℃
-30+45℃
-30+60℃
-30+45℃
Working Pressure
(bar)
124
169.3
124
169.3
Testig Pressure
(bar)
207
250
207
250
Material
AA6061
AA6061
AA6061
AA6061
Fire Rate
343B
70B
89B
89B
Packing Size(mm)
200x150x480
310x185x540
310x185x710
350x215x730
Qty./ctn(pcs)
1
1
1
1
Qty./1x20'ft(pcs)
1900
900
700
500
