Fire Extinguisher and Cylinder

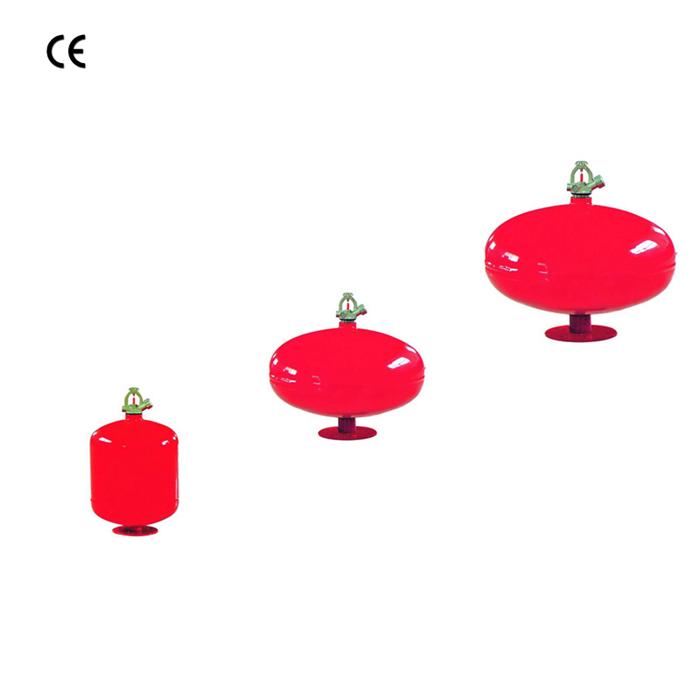

Hanging Type Fire Extinguisher (CE)
·ISO 9001 certified quality management system
·Suitable against class A, class B, class C, and live electrical fires
·All fire extinguishers must be serviced in accordance with BS5306
·Polyester powder external coating(Red, Yellow, Blue color Available)
·All fire extinguishers are tested no leakage.
·Chemical Agent:  ABC40%,  Pressured with nitrogen gas.
·Working Pressure: 14Bar;
  Test Pressure: 27Bar;
Capacity
4.5kg
6kg
12kg
Item No.
PSE19-01
PSE19-02
PSE19-03
Out-dia.
(mm)
194
292
370
Cylinder Length
(mm)
240
180
220
Cylinder Weight
(kg)
2.2
2.7
4.5
ExtinguisherWeight(kg)
7.4
10
17
Volume
(L)
5.5
7.6
15
Filled Weihgt
(kg)
4.5
6
12
Temperautre Range
-10+50℃
-10+50℃
-10+50℃
Working Pressure
(bar)
14
14
14
Testig Pressure
(bar)
25
25
25
Min Wall-Thickness(mm)
1.35
2.30
2.05
Material
St12/DC01
St12/DC01
St12/DC01
Fire Class
21A 113B C
21A 183B C
43A 233B C
Packing Size(cm)
20x21x35
30x30x29
38x39x34
