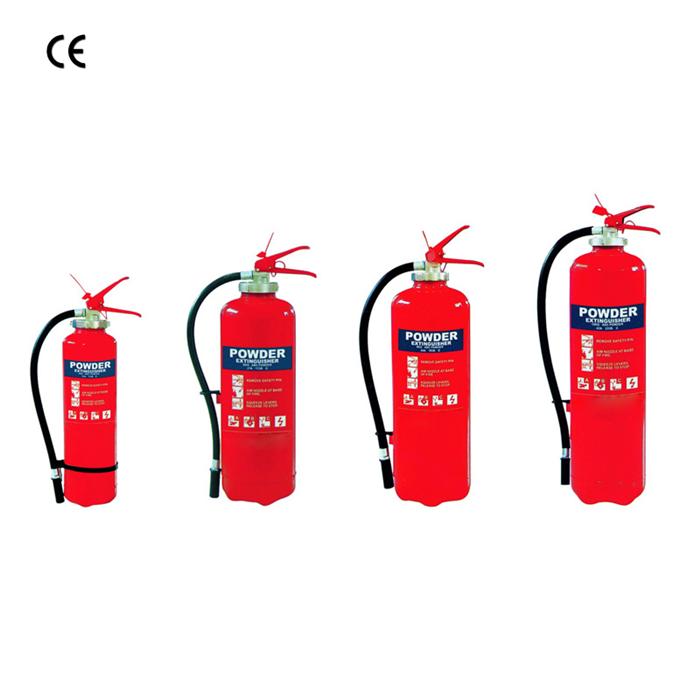

Fire Extinguisher and Cylinder

Internal Cartridge Type (CE)
·ISO 9001 certified quality management system
·Suitable against class A, class B, class C, and live electrical fires
·All fire extinguishers must be serviced in accordance with BS5306
·Polyester powder external coating(Red, Yellow, Blue color Available)
·All fire extinguishers are tested no leakage.
·Chemical Agent:  ABC40%,  Pressured with nitrogen gas.
·Working Pressure: 14Bar;
  Test Pressure: 27Bar;
Capacity
4Kg
6Kg
9Kg
12Kg
Item No.
PSE17-01
PSE17-02
PSE17-03
PSE17-04
Out-dia.(mm)
140
160
180
180
Cylinder Length (mm)
405
455
515
605
Cylinder Weight (kg)
2.2
3
4.4
5
Extinguisher Weight (kg)
8
11
15
18.5
Volume (L)
5.3
7.9
11.4
13.6
Full Weihgt(kg)
4
6
9
12
Temperautre Range
-30+60℃
-30+60℃
-30+60℃
-30+60℃
Testig Pressure(bar)
27
27
27
27
Min Wall-thickness
1.17
1.24
1.30
1.30
Material
St12/DC01
St12/DC01
St12/DC01
St12/DC01
Fire Class
21A 113B C
27A 183B C
34A 233B C
43A 233B C
Packing Size(mm)
150x
160x520
170x
180x570
190x
200x630
190x
200x420
Internal gas cartridge
Internal gas cartridge
EInternal gas cartridge
Internal gas cartridge
Internal gas cartridge
Drive as
Co2(75)g
Co2(120)g
Co2(150)g
Co2(180)g
Material
St52

St52

St52

St52
