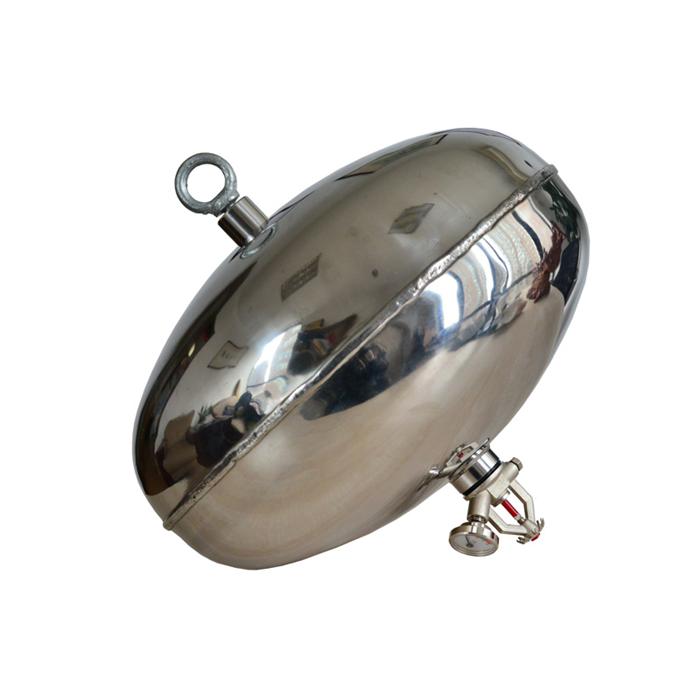

Stainless Steel Fire Extinguisher

Stainless Steel Hanging Type Fire Extinguisher
·TUV CE0036 Standard
·Material: SS304
·Suitable against class A, class B, class C, and live electrical fires
·All fire extinguishers must be serviced in accordance with BS5306
·Stainless Steel polished or RAL3000 red painting
·All fire extinguishers are tested no leakage.
·Chemical Agent: ABC40%, Pressured with nitrogen gas.
·Working Pressure: 14Bar;
  Test Pressure: 27Bar;
Capacity
1Kg
3Kg
4.5Kg
6Kg
12Kg
Item No.
PSS-H01
PSS-H03
PSS-H04
PSS-H06
PSS-H12
Out-dia.(mm)
160
240
194
295
367
Cylinder Length (mm)
162
190
255
208
262
Cylinder Weight (kg)
0.6
1.4
2.2
2.7
4.5
Volume (L)
1.51
3.7
5.5
7.3
14.6
Full Weihgt(kg)
1
3
4.5
6
12
Temperautre Range
-10+50℃
-10+50℃
-10+50℃
-10+50℃
-10+50℃
Working Pressure(bar)
14
14
14
14
14
Testig Pressure(bar)
25
25
25
25
25
Min Wall-thickness
0.8
1.14
1.35
2.30
2.05
Material
SS304
SS304
SS304
SS304
SS304
Fire Rate
5A 34B C
8A 70 BC
21A 113B C
21A 183B C
43A 233B C
Packing Size(mm)
330x
330x215
245x
245x240
200x
200x305
300x
300x235
375x375x320
Quantity/CTN(pcs)
4
1
1
1
1
Quantity/20ft(pcs)
4800

2000

2300

1400

700
