Fire Extinguisher and Cylinder

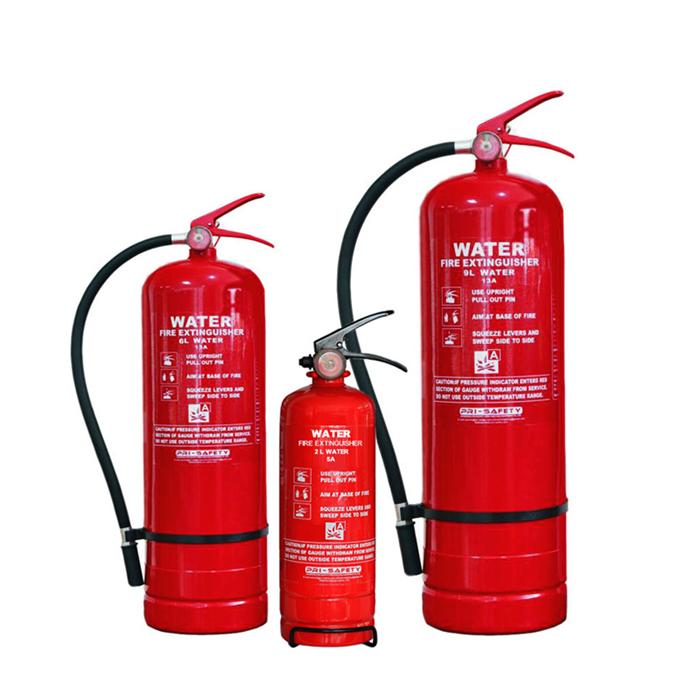

Water Fire Extinguisher
·ISO 9001 certified quality management system.
·Suitable against class A.
·All fire extinguishers must be serviced in accordance with BS5306
·Polyester powder external coating(Red, Yellow, Blue color Available).
·Polyester powder Internal coating(Gray).
·All fire extinguishers are tested no leakage.
·Chemical Agent:  Clean Water,  Pressured with nitrogen gas.
·Working Pressure: 12Bar.
  Test Pressure: 27Bar.

WATER
Capacity
2L
6L
9L
Item No.
W2
W6
W9
Out-dia.(mm)
110
162
184
Cylinder Length(mm)
317
448
519
Volume (L)
2.5
7.7
11.9
Full Weihgt(kg)
4.2
10.2
14.7
Temperautre Range
0+60℃
0+60℃
0+60℃
Working Pressure(bar)
12
12
12
Testig Pressure (bar)
27
27
27
Discharge Time(s)
16
20
28
Fire Class
5A 34B
13A 144B
21A 183B
Packing Size (mm)
360x250x355
175x170x565
205x200x635
Quantity/CTN (pcs)
6
1
1
Quantity/20ft (pcs)
5000

1800

1100
